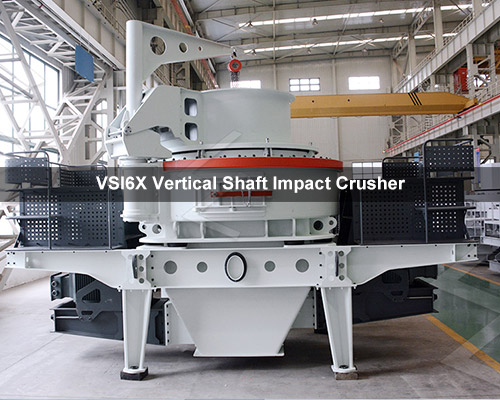

Liming Heavy Industry is a leading manufacturer of high-performance crushing equipment, including its renowned Vertical Shaft Impact (VSI) Crusher. Designed for superior efficiency in shaping and sand-making applications, the Liming VSI Crusher is widely used in aggregates production, mining, and recycling industries. Below are the detailed specifications of this advanced crushing machine.
Key Features of Liming VSI Crusher
- High Crushing Efficiency: Optimized rotor design ensures excellent particle shaping.
- Low Wear & Long Lifespan: Equipped with high-quality wear-resistant materials.
- Energy Saving: Optimized motor power reduces operating costs.
- Versatile Applications: Suitable for various materials, including soft and hard rocks.
Technical Specifications
| Model | Rotor Diameter (mm) | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) | Rotor Speed (rpm) |
|---|---|---|---|---|---|
| VSI6X1263 | 650 | 60 | 160-350 | (2×)220-250 | 1500-1700 |
| VSI5X1145 | 560 | 50 | 100-260 | 220-315 | 1700-1900 |
| VSI9526 | 950 | 45 | 150-390 | 264-440 | 1300-1500 |
Applications
- Aggregate Production: Produces well-shaped sand and gravel for construction.
- Mining & Mineral Processing: Crushes ores and minerals for further processing.
- Recycling: Processes recycled concrete and construction waste efficiently.
Why Choose Liming VSI Crusher?
- Advanced Hydraulic System: Enhances adjustment and maintenance.
- Intelligent Control: Supports automation for precise crushing.
- Global Standards Compliance: Meets international quality certifications.
Conclusion
The Liming Vertical Shaft Impact Crusher offers exceptional performance for crushing and shaping aggregate materials with minimal wear costs. Its specifications can be customized based on production needs, making it a reliable choice for mining and quarrying operations.
