1. Optimized Dynamic Rotor Balance
Mechanical vibration is the primary source of low-frequency acoustic emissions. When a VSI rotor spins at velocities exceeding 70 meters per second, even micro-imbalances create massive structural vibrations. Through advanced computer simulation and precision manufacturing, optimizing the dynamic balance of the internal rotor cavity minimizes asymmetrical shock as material passes through. This precision engineering significantly curtails the fundamental source of mechanical noise before it resonates through the chassis.
2. Premium Rubber and Composite Damping Seals
Structure-borne noise travels quickly through steel and concrete, amplifying the decibel output across the entire quarry site. Deploying premium composite elastomer damping pads between the crusher base, the feed hopper, and the concrete foundation physically breaks the acoustic transmission path. These heavy-duty vibration isolators absorb kinetic energy, preventing the machine’s operational resonance from broadcasting into the surrounding environment.
3. Aerodynamic Cavity & Airflow Self-Circulation
A VSI rotor functions much like a high-speed industrial fan, generating intense aerodynamic vortex noise that can exceed 100 dB. Modern acoustic engineering addresses this by designing an internal airflow self-circulation system within the crushing chamber. Instead of venting turbulent air outward, the exhaust air is channeled back into the cavity. This equalizes internal air pressure and neutralizes the aerodynamic noise emission precisely at the source.
4. Acoustic Enclosures & Soundproofing Shrouds
For installations near urban centers or sensitive ecological zones, source mitigation must be supplemented with transmission barriers. Applying localized or comprehensive acoustic enclosures (soundproofing shrouds) around critical noise-generating components—such as the dual drive motors and transmission belt assemblies—provides a dense physical barrier. These multi-layered sound-absorbing enclosures effectively block the propagation of high-frequency acoustic waves into the atmosphere.
5. Smart Automated Feeding Control
Operating a VSI chamber partially empty causes severe metal-on-rock impact, which generates piercing, high-decibel metallic screeching. A smart PLC automated feeding system ensures that the crusher is continuously “choke-fed.” By maintaining a consistent, dense “rock-on-rock” material bed inside the crushing cavity, the aggregate itself acts as an acoustic dampener, absorbing the kinetic collision energy and silencing the metallic impact noise.
How Liming Redefines Low-Noise Sand Making
As a global leader in crushing and grinding technology, Liming Heavy Industry integrated Acoustic and Eco-friendly Engineering into the foundational architecture of the VSI6X Series Sand Maker. Recognizing that environmental compliance is paramount, Liming engineered specific acoustic advantages directly into the machine.
- New Four-Opening Rotor Design: Compared to legacy three-opening rotors, the patented four-opening configuration streamlines material throughput. This reduces internal air turbulence, dropping the operational noise by an audited 3 to 5 decibels.
- Heavy-Duty Hoisting & Multi-Layer Sealing: Utilizing military-grade sealing surface machining and custom vibration-damping rubber, the VSI6X effectively eliminates chassis resonance.
- VU Aggregate Optimization System: For clients facing extreme environmental scrutiny, Liming offers the VU System—a fully enclosed, negative-pressure, ultra-low noise dry sand-making solution that represents the pinnacle of green mining compliance.
| Feature | The Liming Advantage (VSI6X Series) |
|---|---|
| Rotor Structure | Patented 4-opening rotor; smooth airflow, lower aerodynamic noise |
| Vibration Mitigation | Heavy-duty multi-layer elastic elastomer damping pads |
| Operational Control | Smart PLC automation ensures a constant, sound-absorbing material bed |
| Enclosure Integration | Fully-sealed structures with integrated dust and sound caps |
Designing a Low-Noise Sand Plant: A Holistic Approach
Achieving total acoustic compliance requires more than upgrading a single machine; it demands holistic plant architecture. Liming Heavy Industry provides comprehensive EPC solutions to design low-noise sand plants from the ground up.

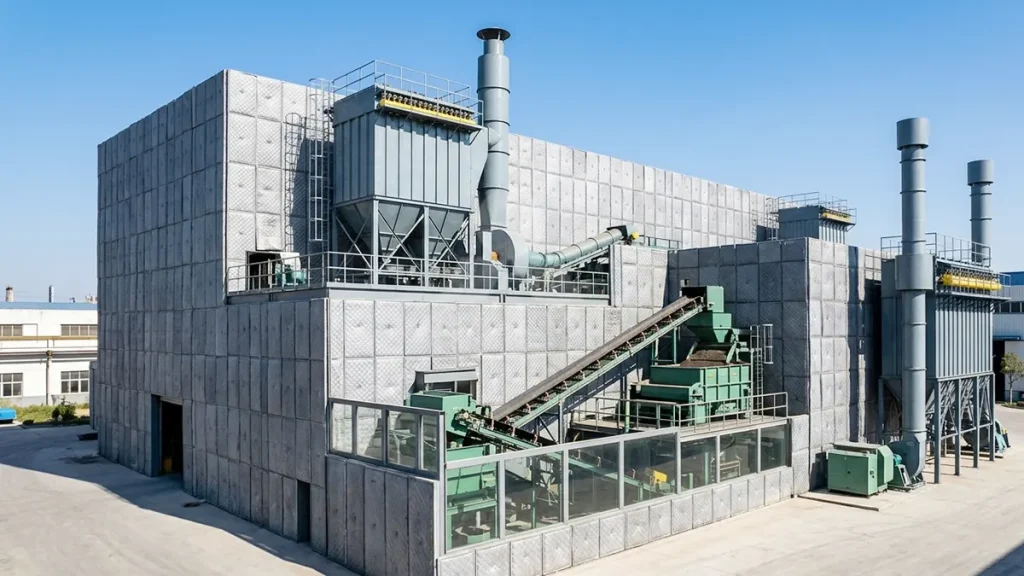

By implementing professional vibration-isolating foundation blueprints, architects prevent mechanical resonance from propagating through the earth to neighboring communities. Furthermore, enclosing the entire production line within acoustic walls, synchronized with high-efficiency Pulse Bag Dust Collectors, ensures the “double-zero” diffusion of both noise and particulate matter.
Secure Your Green Mining Compliance
Solving the acoustic challenges of VSI sand makers requires rigorous, systemic engineering. Relying on outdated equipment places your entire operation at risk of severe regulatory penalties and community shutdowns. Liming Heavy Industry does not merely manufacture high-efficiency crushers; we architect complete, low-noise, and zero-dust green sand making solutions that align with the strictest global environmental protocols. Upgrade your compliance infrastructure today to secure the long-term operational viability of your quarry.
